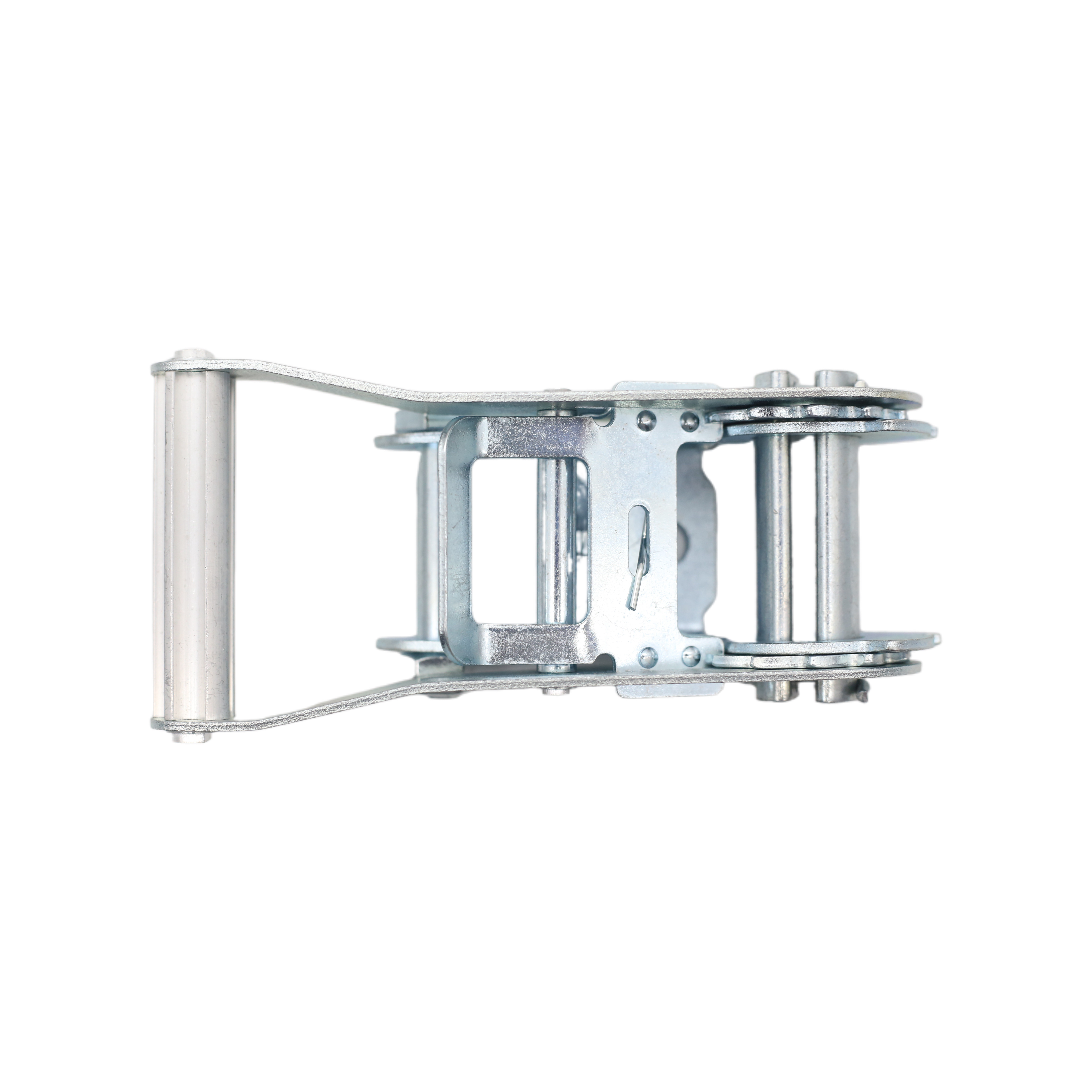

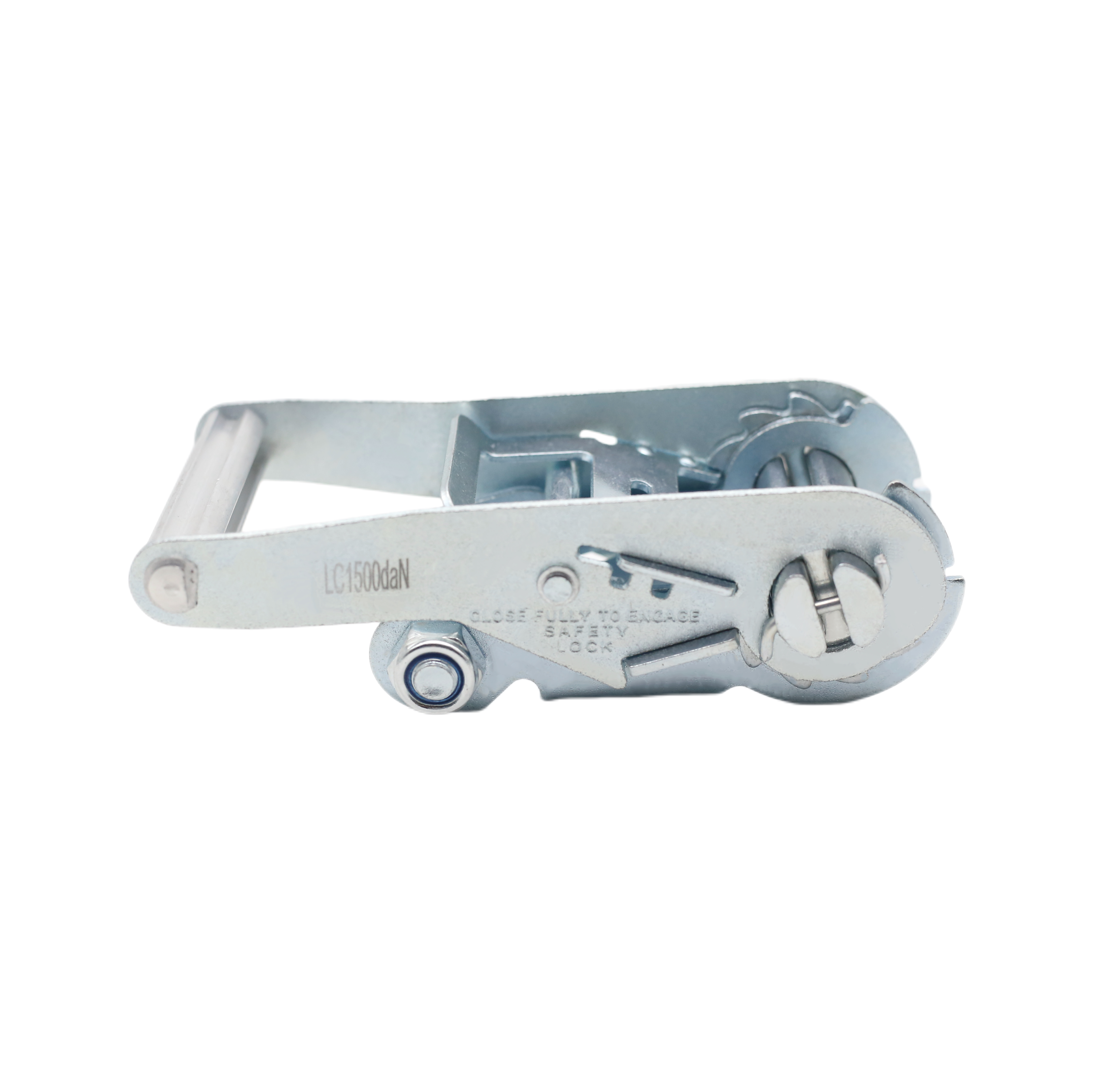

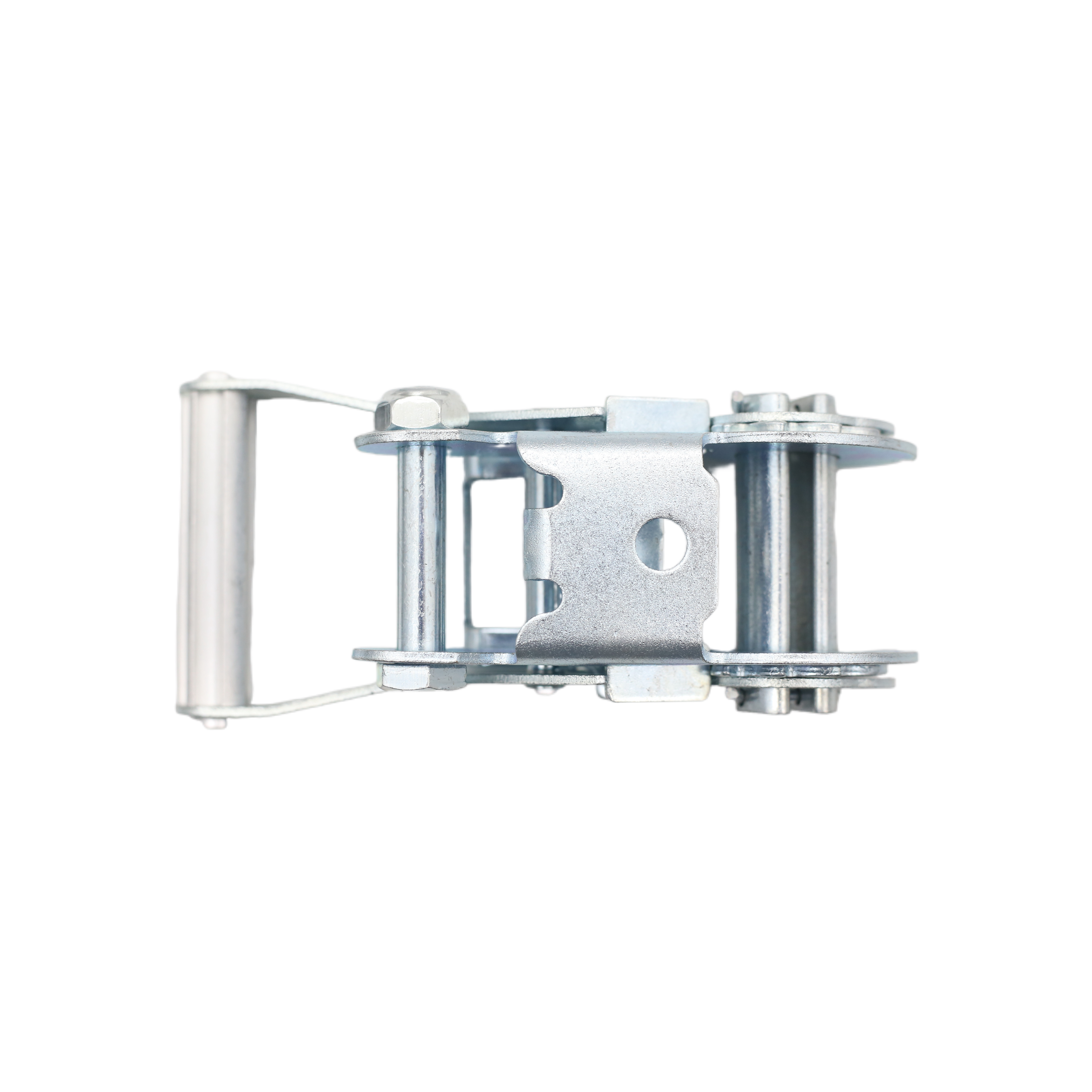

1.5'' 3T Ratchet Buckle with Aluminum Handle

1.5'' 3T Ratchet Buckle with Aluminum Handle

About this item:

Lightweight Aluminum Grip Ratchet Tensioner, EU Certified 3 Ton Webbing Fastener for Cargo Haulage & Load Securing

Advantages:

Lightweight aluminum handle cuts operating fatigue while maintaining high structural strength
Compliant with EU industry standards, rated 3 ton working load for 1.5 inch webbing

Webbing Size:

50mm tensioner safety pull 1,500kg, suitable for 38mm wide webbing.

Detailed Specification:

Product Name	Short Ratchet Buckle
Width	1.5'' / 38mm
Handle	Aluminum Handle
Finished	White Zinc Plated
LC	1,500kg / 1,500daN
Breaking Strength	3,000kg / 3,000daN


This 1.5 inch 3T ratchet buckle adopts premium aluminum handle and meets EU standard specifications. The lightweight lever enables easier tension adjustment, and robust internal gears deliver dependable load locking.

How to Use a Ratchet Buckle (Industrial/Tie-Down)
Thread the Strap: Ensure the buckle is in the closed position with the cylinder slot facing outward. Feed the strap through the slot from the bottom.
Remove Slack: Pull the strap through the reel until it is snug against the load.
Tension: Crank the handle back and forth. The internal gears will catch the strap and tighten it incrementally.
Lock: Once tight, push the handle down into the fully closed position to lock the tension.
Release: To undo, pull the spring-loaded release lever on the handle and rotate the handle 180 degrees until it clicks open, then pull the webbing out.
