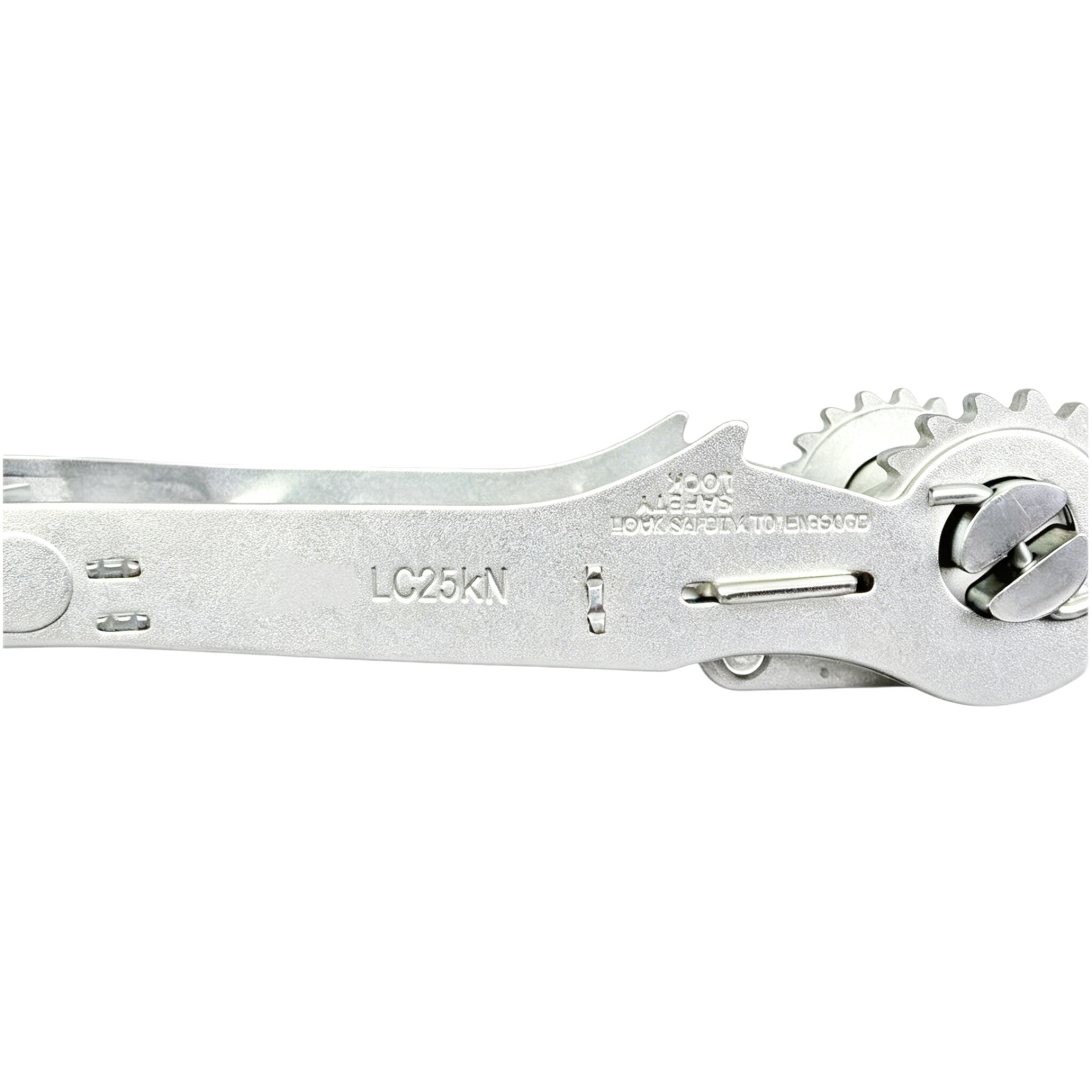

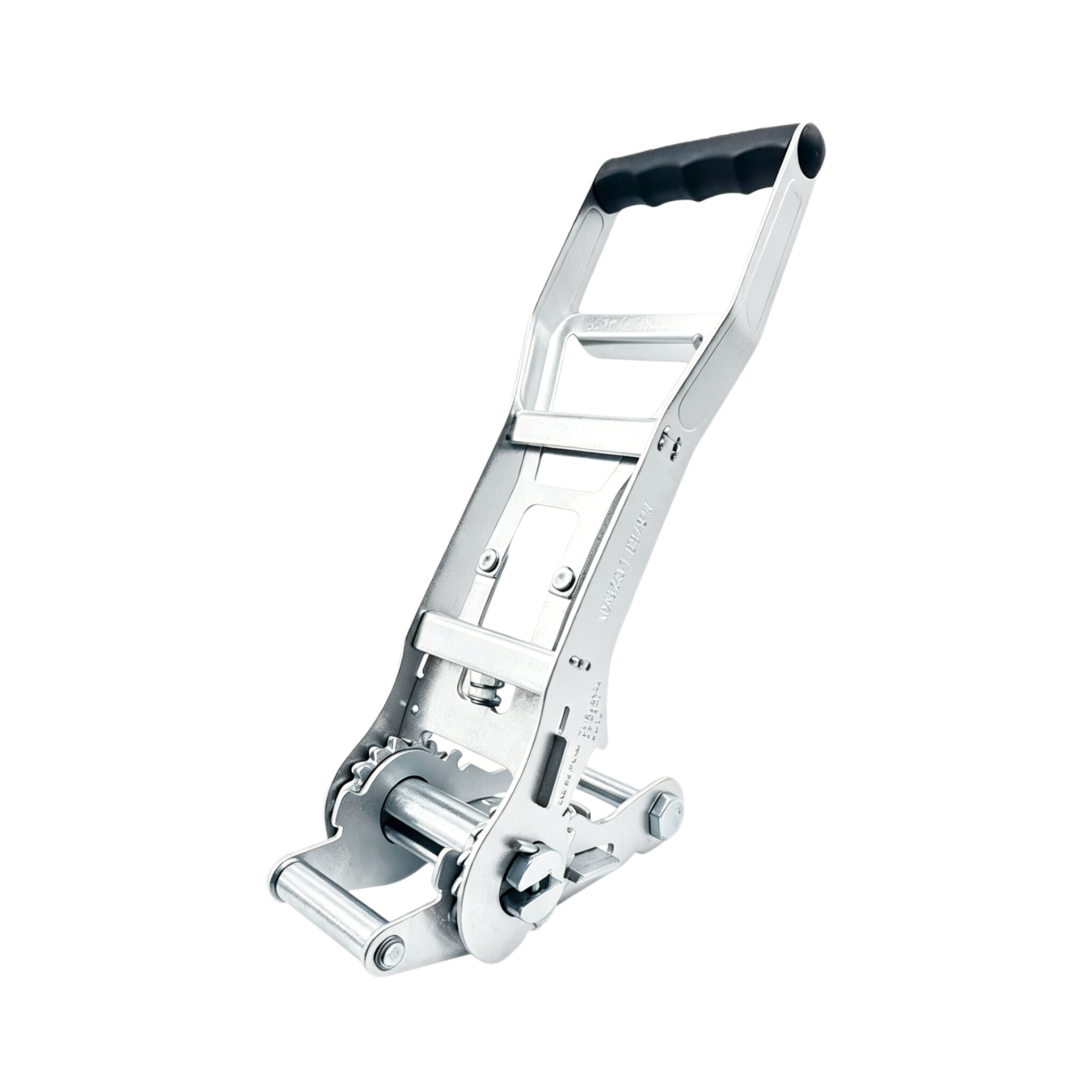

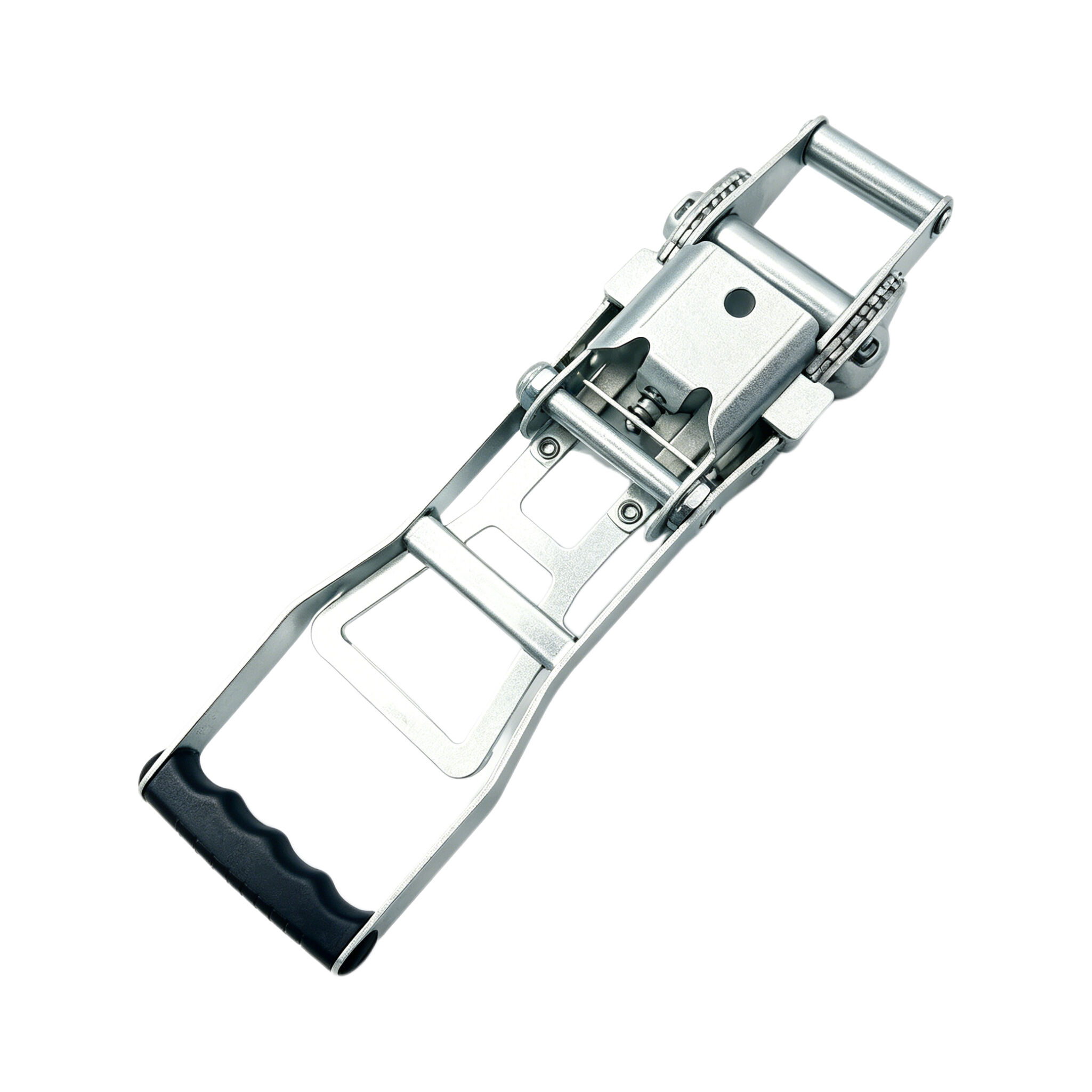

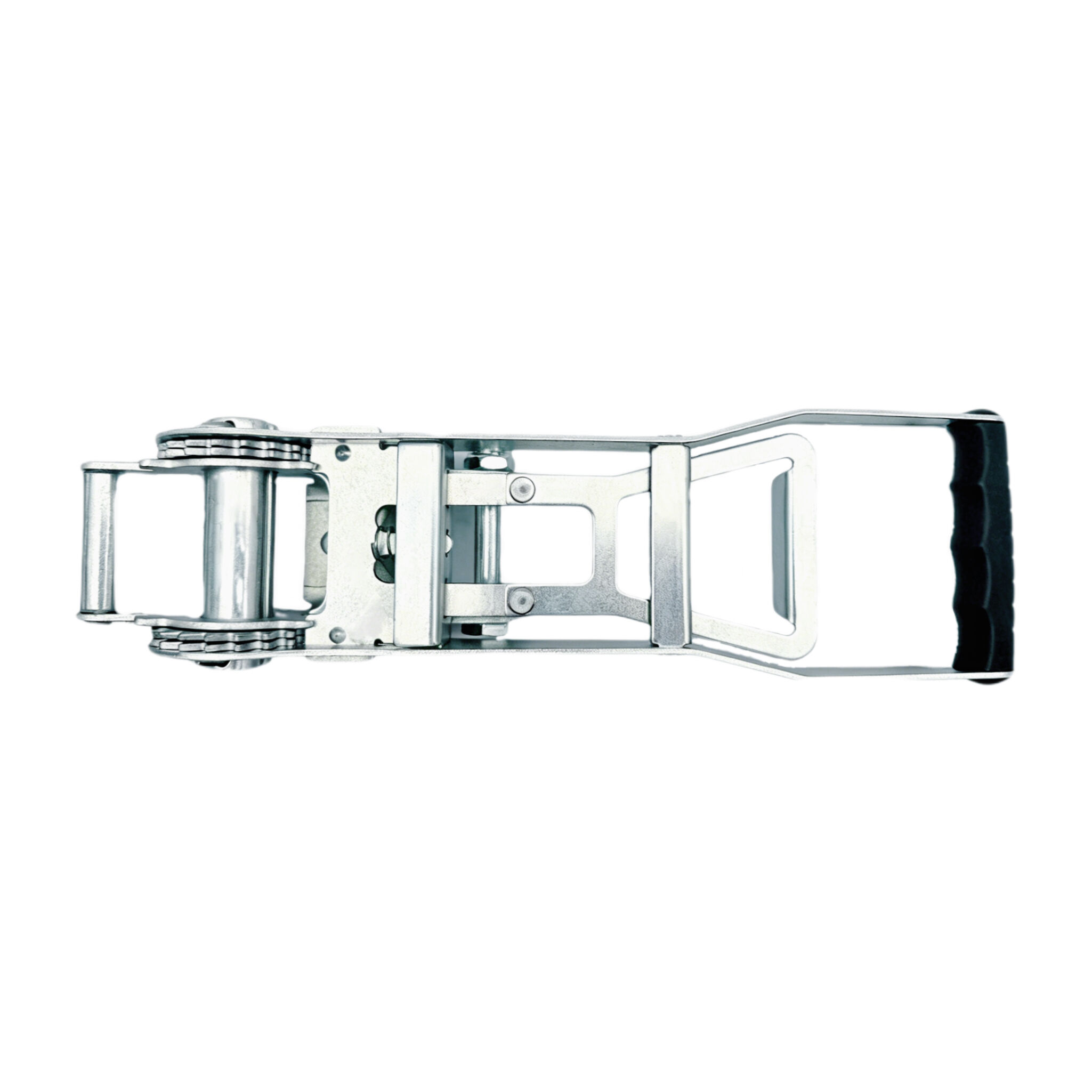

2'' 350mm Ergo Ratchet Buckle

About this item:

Different Names:

2‑Inch 350mm lengthened Ergonomic Ratchet Tensioner – Heavy‑Duty Lashing Fastener for Step‑by‑Step Cargo Tightening, Ideal for Truck, Trailer, Container and Pallet Load Securing Applications

Applications:

Used for quickly adjusting and firmly fixing various webbing
Widely Using in Transportation Industry, warehouse packing, automobile cargo bundling, luggage fixing, etc.

Advantages:

Ergonomic handle design：Reduces hand fatigue during repeated tension‑adjustment operations
Long ratchet body：Provides ample travel for quick pre‑tensioning of long webbing straps

Detailed Specification:

Product Name	Ergo Ratchet Buckle
Fit Webbing Size	2'' / 50mm
Ratchet Length	350mm
Material	Carbon Steel
Finished	Zinc Plated

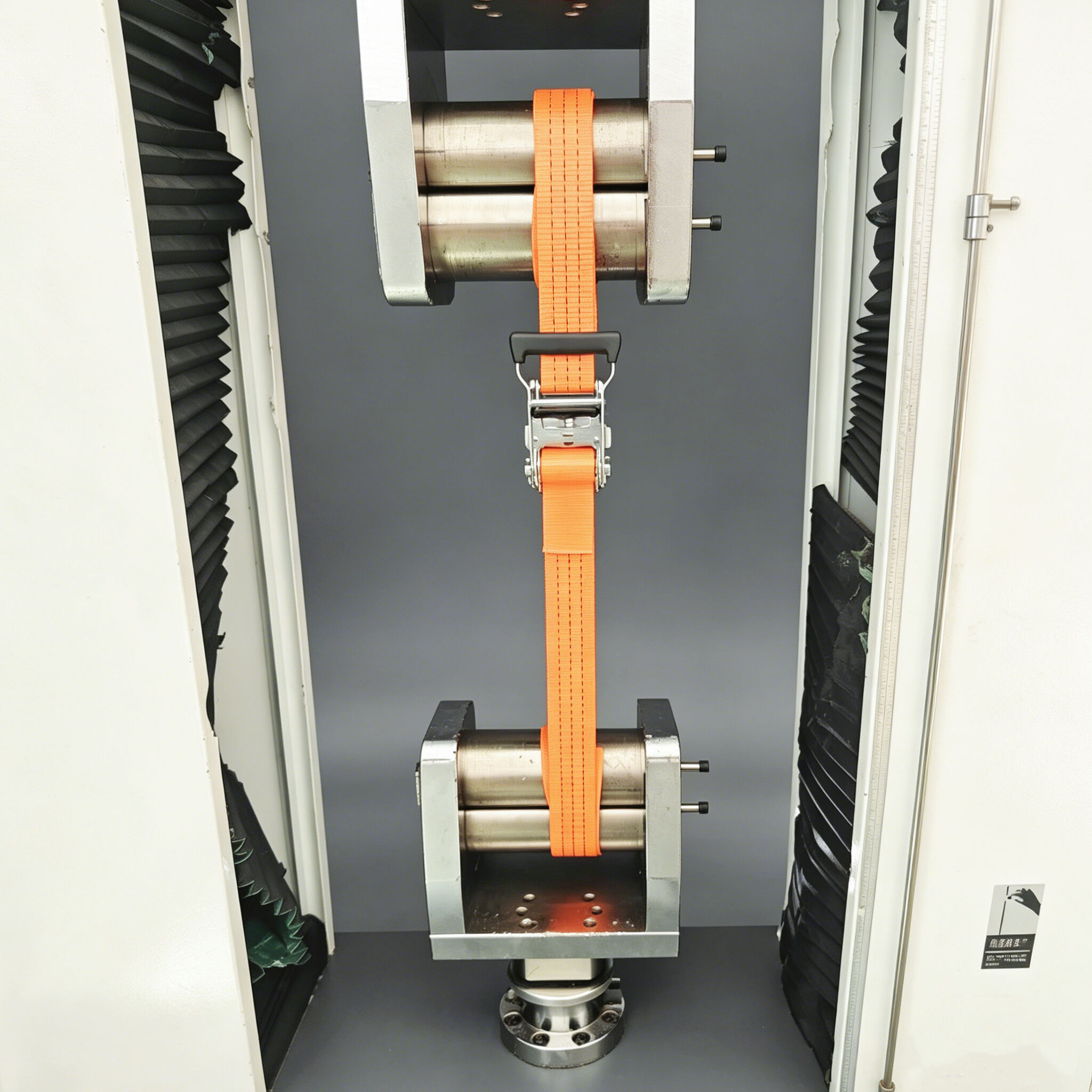

Breaking Strength	5,000kg / 5,000daN
Sample	Available
Origin	Zhejiang

Application

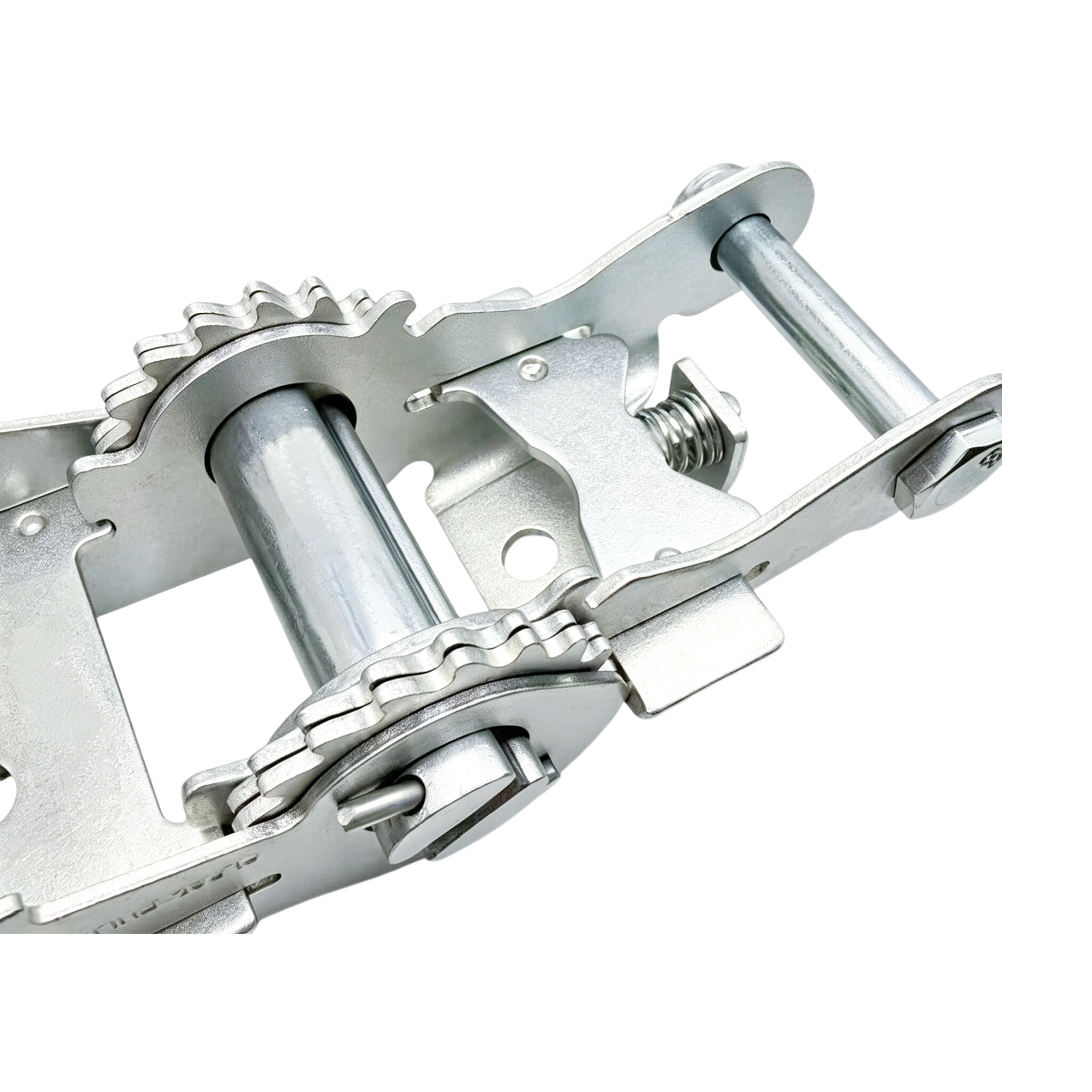

A ratchet buckle is a mechanical device used to apply and maintain tension on a strap or belt through a gear and pawl system. Ratchet buckles are valued for their ability to tighten loads incrementally with high precision and strength.

Main Applications
Truck & trailer cargo tie‑down: Secure freight on flatbed trucks and semi‑trailers during road transit.

Heavy‑equipment securing: Fasten machinery, construction parts and oversized cargo for transport

How to Use a Ratchet Buckle (Industrial/Tie-Down)
Thread the Strap: Ensure the buckle is in the closed position with the cylinder slot facing outward. Feed the strap through the slot from the bottom.
Remove Slack: Pull the strap through the reel until it is snug against the load.
Tension: Crank the handle back and forth. The internal gears will catch the strap and tighten it incrementally.
Lock: Once tight, push the handle down into the fully closed position to lock the tension.
Release: To undo, pull the spring-loaded release lever on the handle and rotate the handle 180 degrees until it clicks open, then pull the webbing out.
