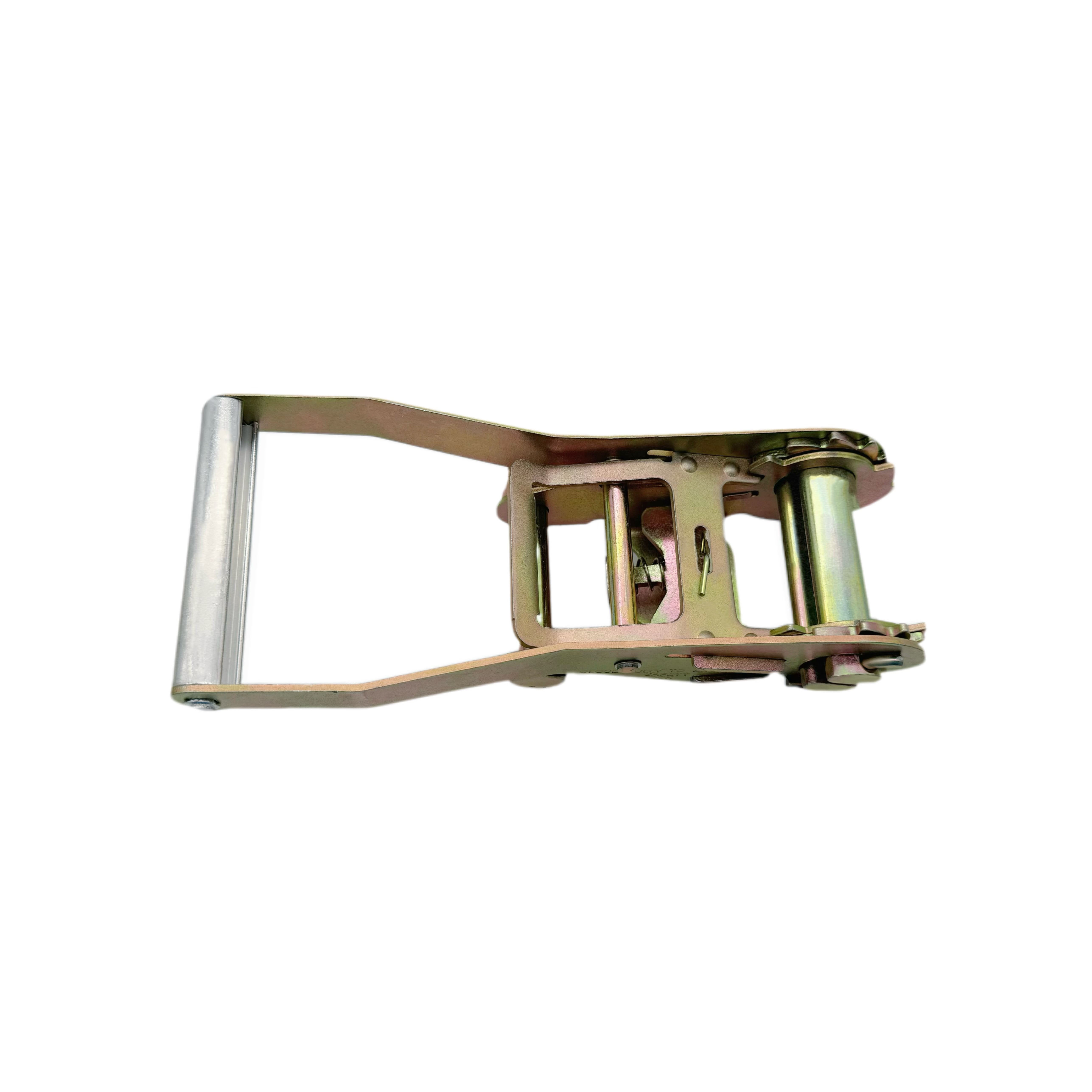

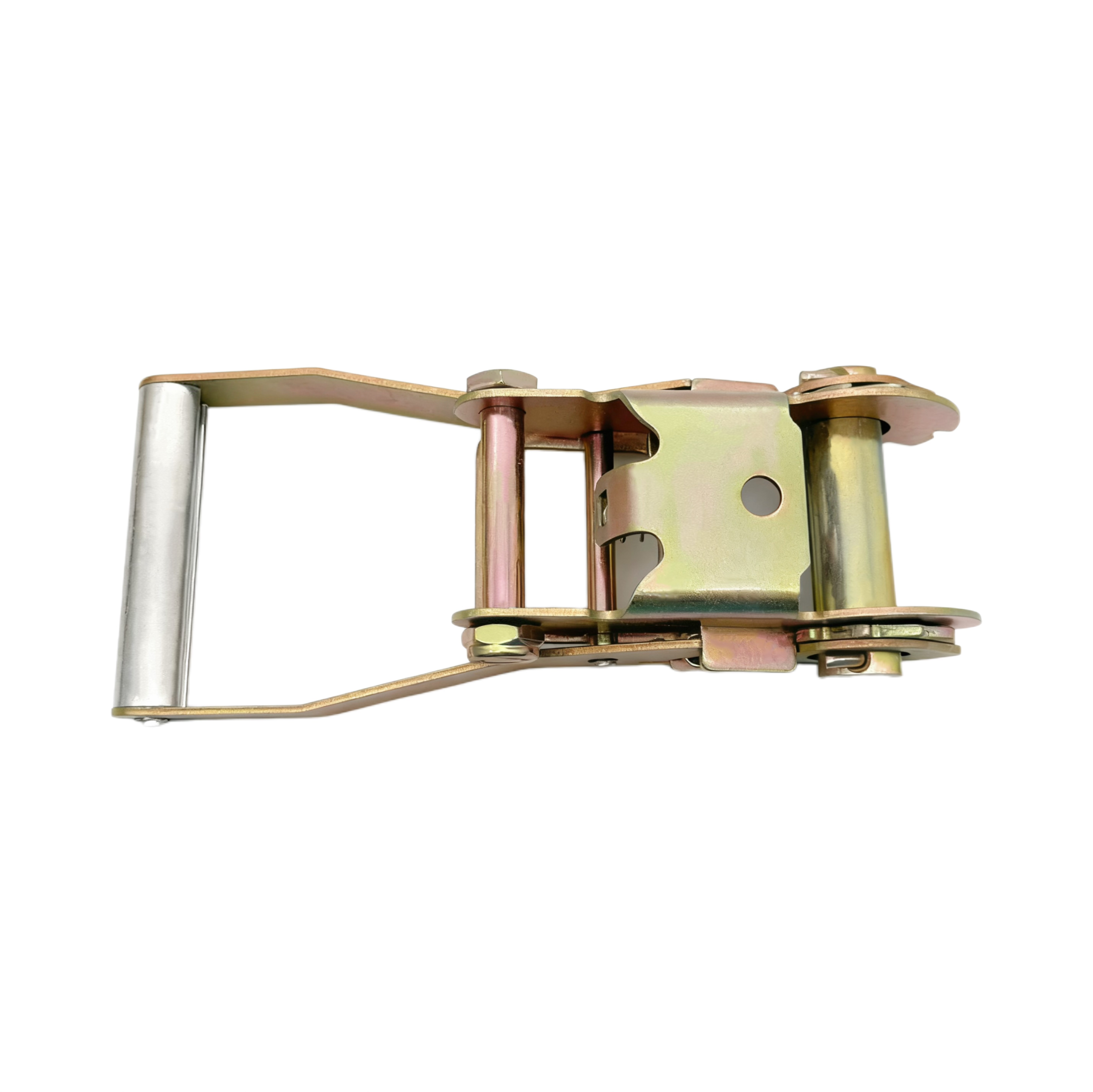

2'' 5,000kg Ratchet Buckle with Alumimum Handle

2'' 5,000kg Ratchet Buckle with Alumimum Handle

About this item:

Different Names:

5000kg 2" Ratchet Buckle with Light‑Weight Aluminum Handle

Applications:

Used for quickly adjusting and firmly fixing various webbing
Fasten RV, utility vehicles and agricultural machinery on transport trailers for field‑based fleet operations

Advantages:

Light‑weight aluminum handle lowers total weight for easier daily repeated operation
Suitable for transporting vehicles, construction machinery and bulky goods, a standard lashing component for commercial tie‑down strap assemblies

Webbing Size:

Suitable for 2inch (50mm) wide webbing.

Detailed Specification:

Product Name	Ratchet Buckle
Width	2'' / 50mm
Handle	Alumimum Handle
Material	Carbon Steel
Finished	Zinc Plated
Breaking Strength	5,000kg / 11,000lbs
Sample	Available
Place of Origin	Zhejiang, China


us 拉紧器应用图.png

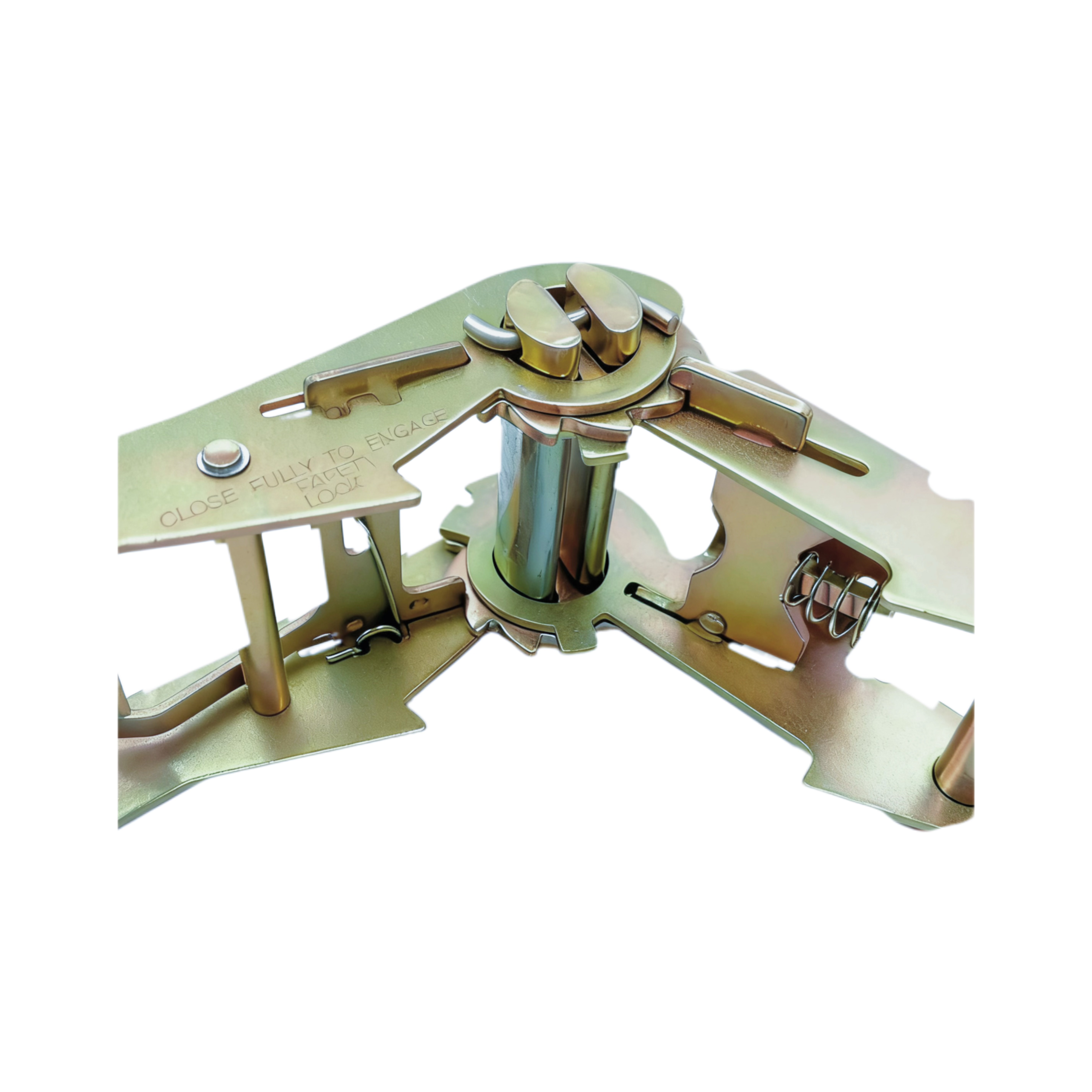

The 2'' 5000kg ratchet buckle with aluminum handle is a standard heavy‑load mechanical tensioning unit. Utilizing robust gear‑pawl mechanism, it delivers and maintains high tension for 2‑inch lashing webbing. The lightweight aluminum handle reduces overall weight for convenient daily heavy‑cargo lashing operations.

Primary Applications
Secure heavy‑duty cargo on flatbed trucks and trailers; lightweight aluminum handle suits daily repeated lashing operations
Widely used in freight yards, warehouses and container terminals for fastening steel materials, pallets and industrial equipment
How to Use a Ratchet Buckle (Industrial/Tie-Down)
Thread the Strap: Ensure the buckle is in the closed position with the cylinder slot facing outward. Feed the strap through the slot from the bottom.
Remove Slack: Pull the strap through the reel until it is snug against the load.
Tension: Crank the handle back and forth. The internal gears will catch the strap and tighten it incrementally.
Lock: Once tight, push the handle down into the fully closed position to lock the tension.
Release: To undo, pull the spring-loaded release lever on the handle and rotate the handle 180 degrees until it clicks open, then pull the webbing out
