2 Inch 5T Ratchet Buckle with Swivel J Hook

2 Inch 5T Ratchet Buckle with Swivel J Hook

About this item:

Different Names:

Ratchet, Tensioner, Lashing Ratchet, Ratchet Strap Tightener, Ratchet Latch, Ratchet Fastener

Applications:

Used for quickly adjusting and firmly fixing various webbing.
Widely Using in Transportation Industry, warehouse packing, automobile cargo bundling, luggage fixing, etc.

Advantages:

Not easy to wear, high hardness, not easy to deform.
The rivet snap at the product connection is reinforced, and the connection fastening is not loose.
Plastic handle, increasing frictional force.

Webbing Size:

50mm tensioner safety pull 1,666kg, suitable for 50mm wide webbing.

Detailed Specification:

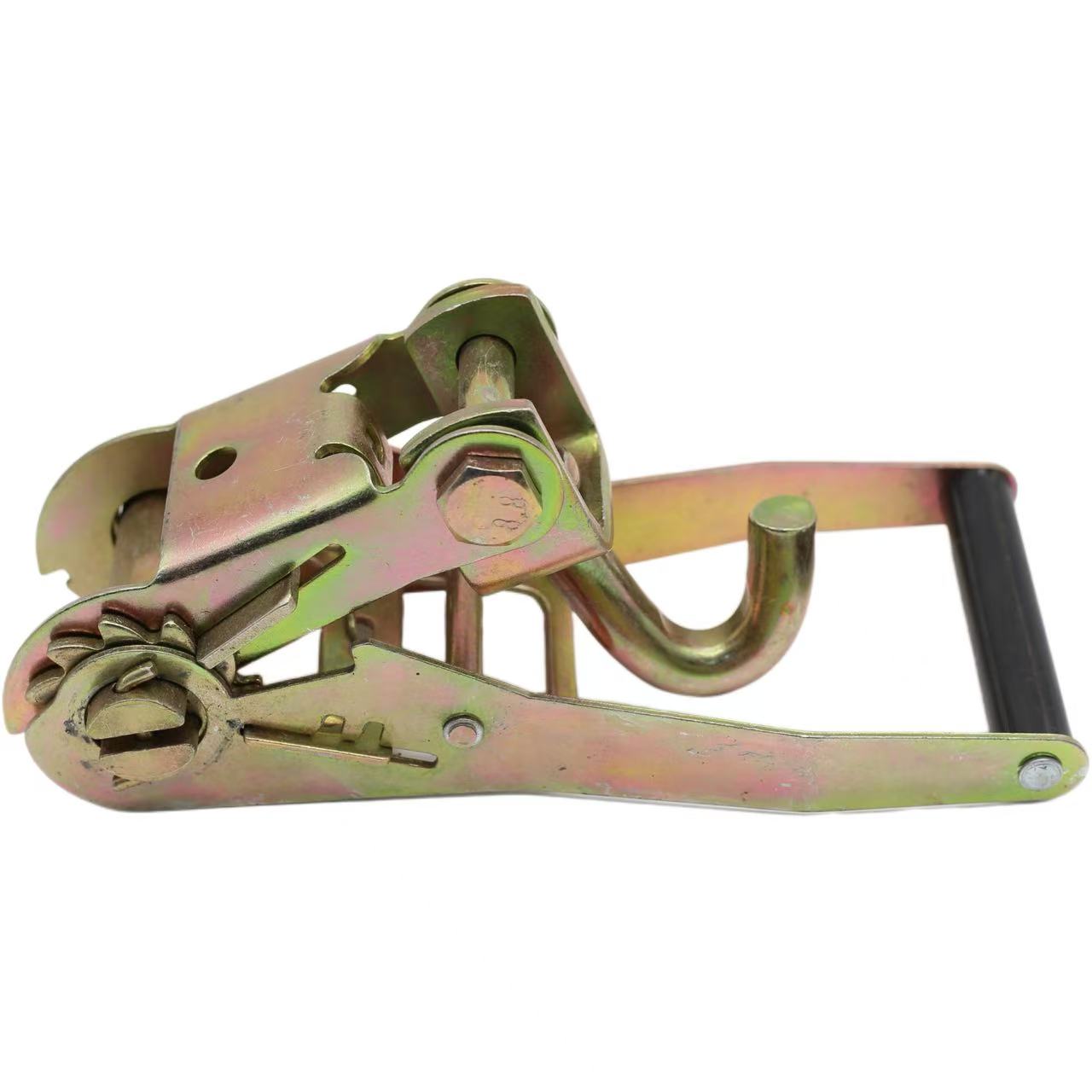

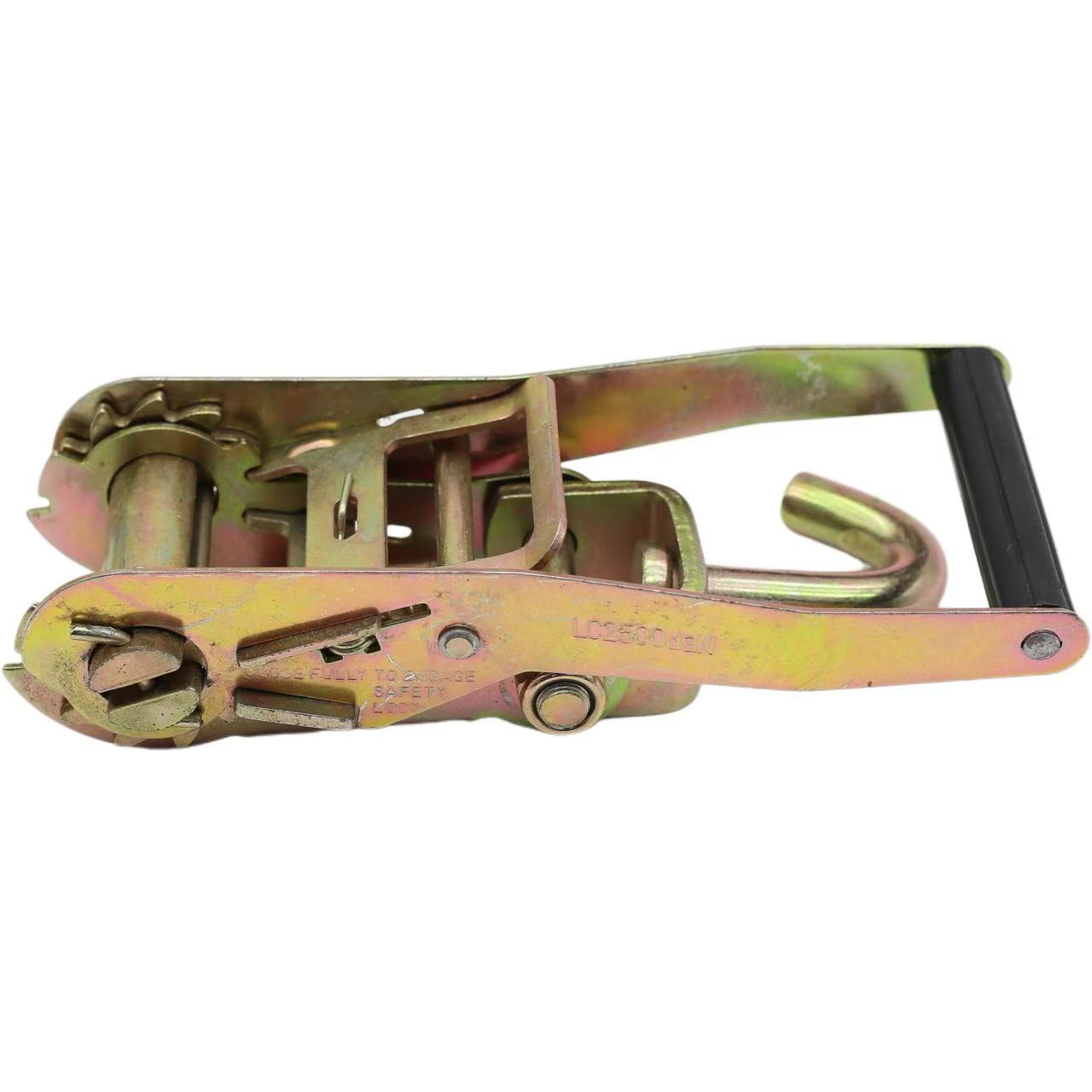

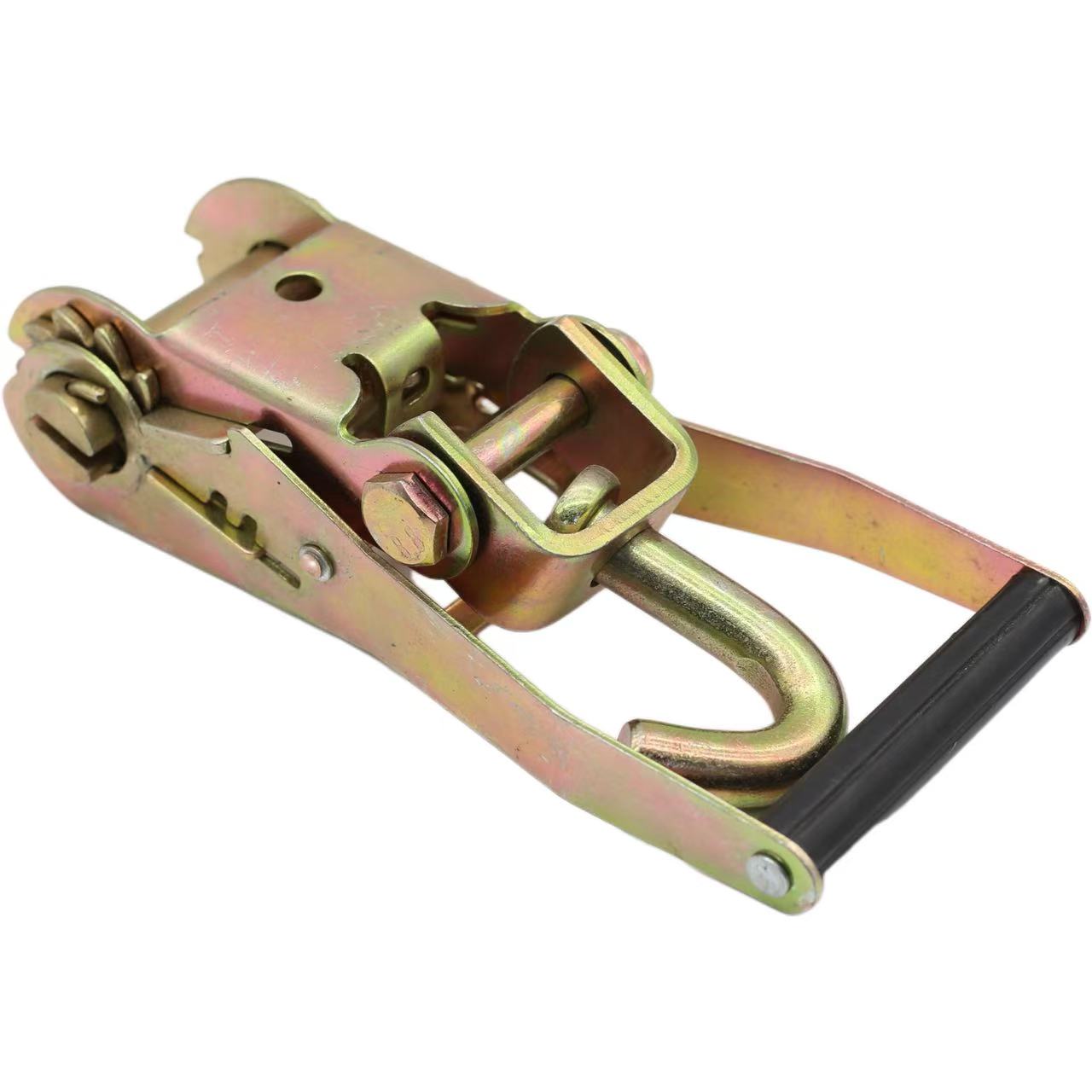

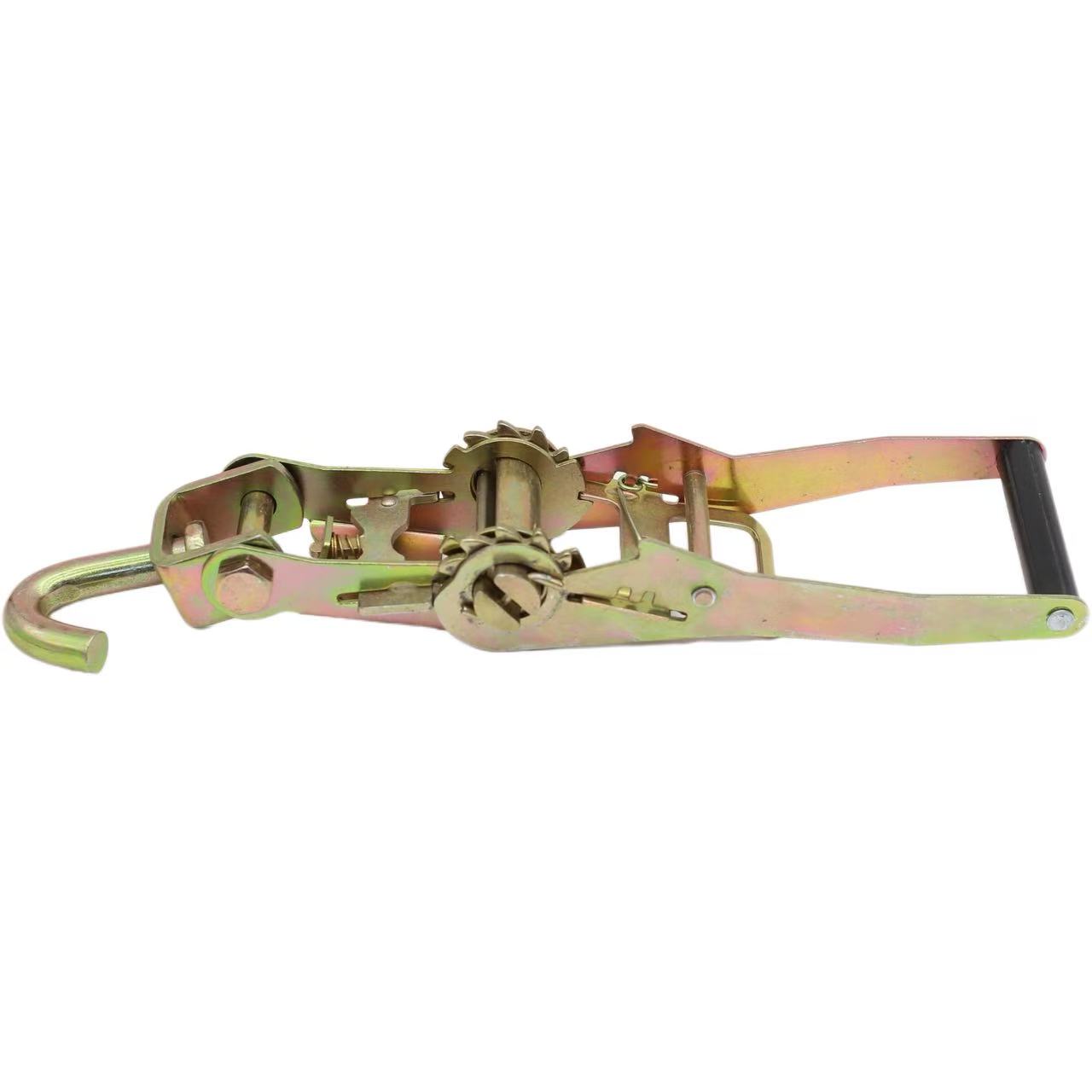

Product Name	Ratchet Buckle with Swivel J Hook
Width	2'' (50mm)
Ratchet handle	Plastic Handle
Material	Steel
Finished	Yellow Zinc Plated
Breaking Strength	5,000kg / 11,000lbs
Brand	Botuan
Place of Origin	Zhejiang,China



A ratchet buckle is a mechanical device used to apply and maintain tension on a strap or belt through a gear and pawl system. Ratchet buckles are valued for their ability to tighten loads incrementally with high precision and strength.

Primary Applications
Cargo Tie-Downs: Heavy-duty metal buckles used to secure cargo on trucks, trailers, and boats. They often feature workload ratings up to thousands of pounds.
Fashion (Ratchet Belts): A modern alternative to traditional hole-based belts, using a hidden track of teeth on the back of the strap for a custom, "hole-less" fit.

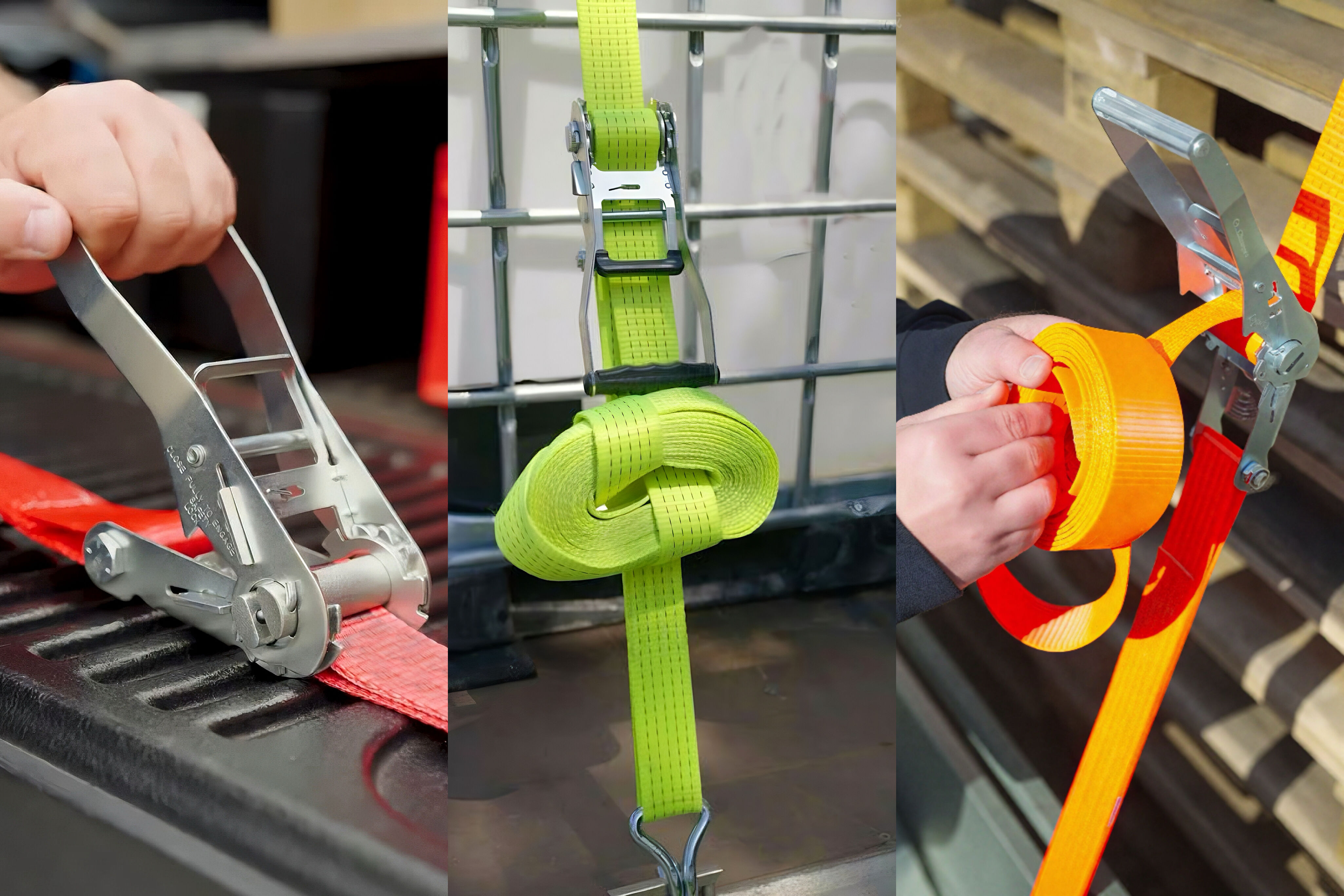

How to Use a Ratchet Buckle (Industrial/Tie-Down)
Thread the Strap: Ensure the buckle is in the closed position with the cylinder slot facing outward. Feed the strap through the slot from the bottom.
Remove Slack: Pull the strap through the reel until it is snug against the load.
Tension: Crank the handle back and forth. The internal gears will catch the strap and tighten it incrementally.
Lock: Once tight, push the handle down into the fully closed position to lock the tension.
Release: To undo, pull the spring-loaded release lever on the handle and rotate the handle 180 degrees until it clicks open, then pull the webbing out.

Ningbo Botuan Trading Co., Ltd., established in 2021, serves as the international trade division of Ningbo Force Rigging Co., Ltd. (founded in 2008). We specialize in the production and global distribution of cargo control accessories and heavy-duty truck hardware components.

Our state-of-the-art production facility is equipped with 40 large and small webbing machines, supported by a dedicated R&D and technical team committed to product innovation and quality improvement. All our products comply with international standards, including European EN, American WSTDA, and Australian AS/NZS, and hold certifications such as CE, GS, and TUV.

We offer customization and OEM services, ensuring tailored solutions to meet diverse client needs. Our goal is to establish long-term, stable partnerships with global clients, fostering mutual growth and success.
