1'' 800kg Ratchet Buckle

About this item:

Different Names:

1 inch 800kg European Standard Steel Tensioner

Advantages:

High-strength steel construction offers stable load bearing and extended service lifespan
Precise gear structure enables gradual tension adjustment to fit various binding demands
Slim compact design facilitates easy installation, operation and storage

Detailed Specification:

Product Name	Steel Handle Ratchet Buckle
Width	1’’ (25mm)
Breaking Strength	800kg / 800daN


This 1 inch 800kg ratchet buckle is compatible with 25mm webbing. Made of solid galvanized steel, it delivers consistent binding tension to prevent cargo shifting. Its refined ratchet structure supports smooth tightening and releasing, serving as a reliable fastener for medium and light cargo securing jobs.

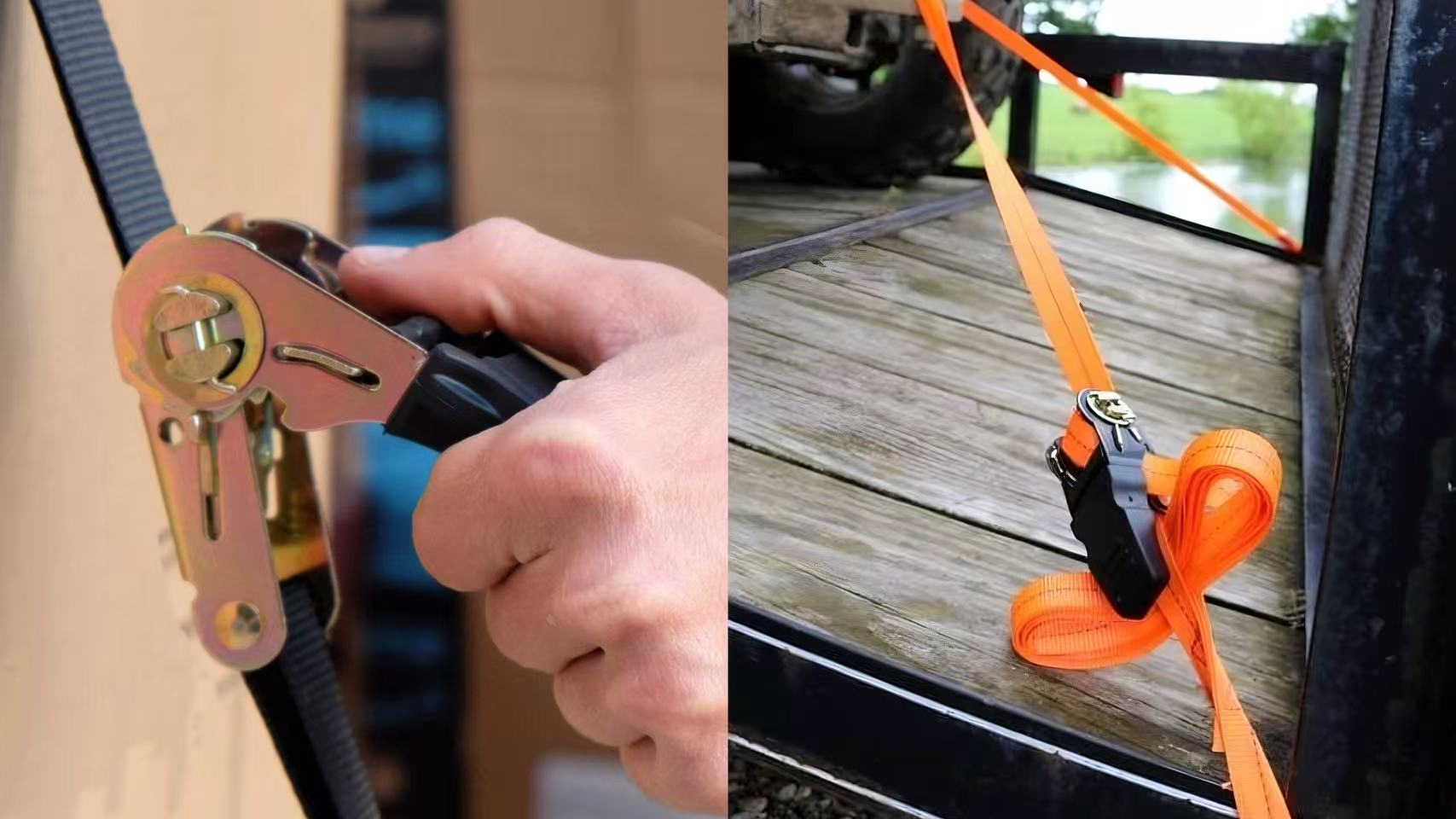

How to Use a Ratchet Buckle (Industrial/Tie-Down)
Thread the Strap: Ensure the buckle is in the closed position with the cylinder slot facing outward. Feed the strap through the slot from the bottom.
Remove Slack: Draw the strap across the spool until it sits tightly against the cargo.
Tension: Rock the lever to and fro; internal gears engage the strap for step-by-step tensioning.
Lock: Once tight, push the handle down into the fully closed position to lock the tension.
Release: To undo, pull the spring-loaded release lever on the handle and rotate the handle 180 degrees until it clicks open, then pull the webbing out.
