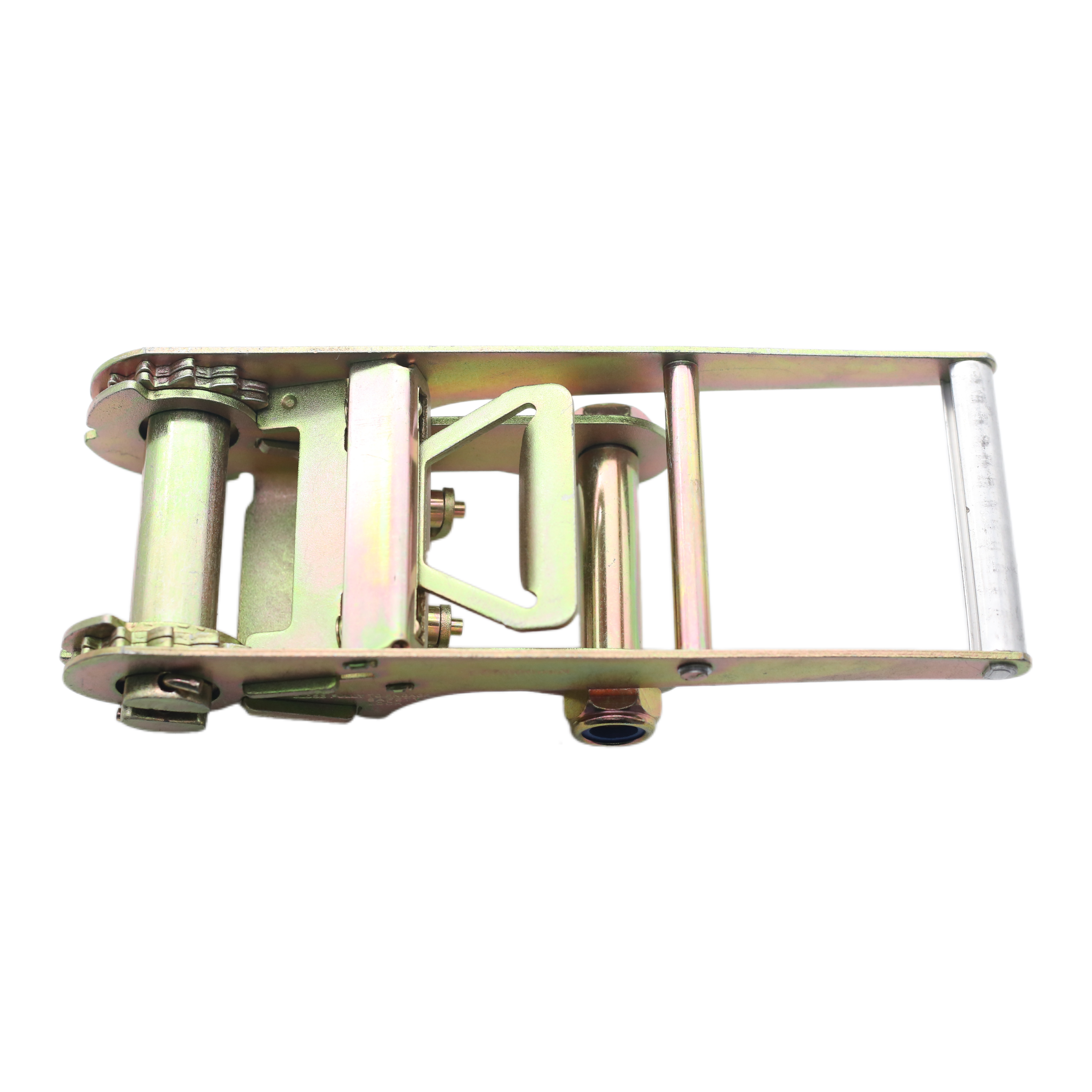

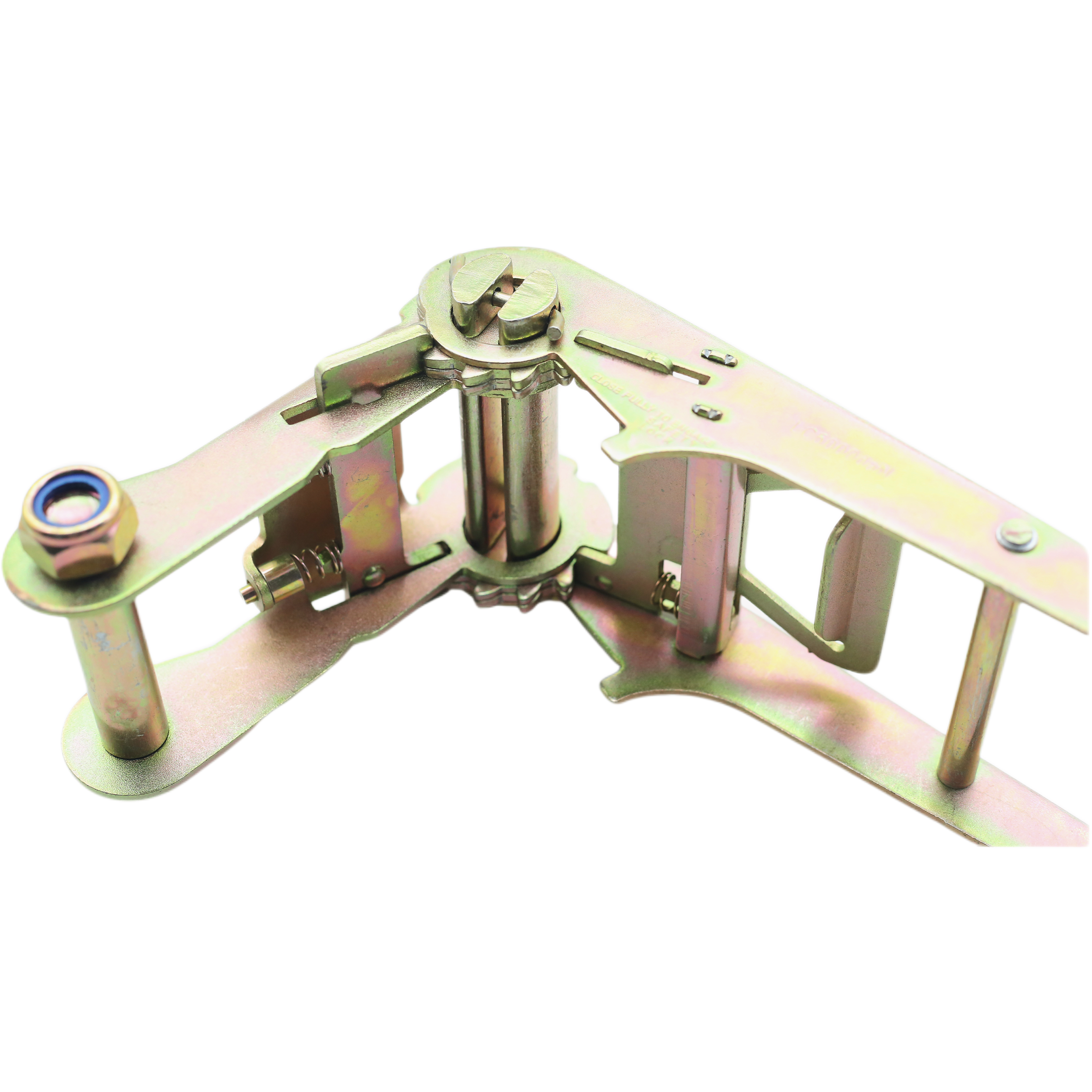

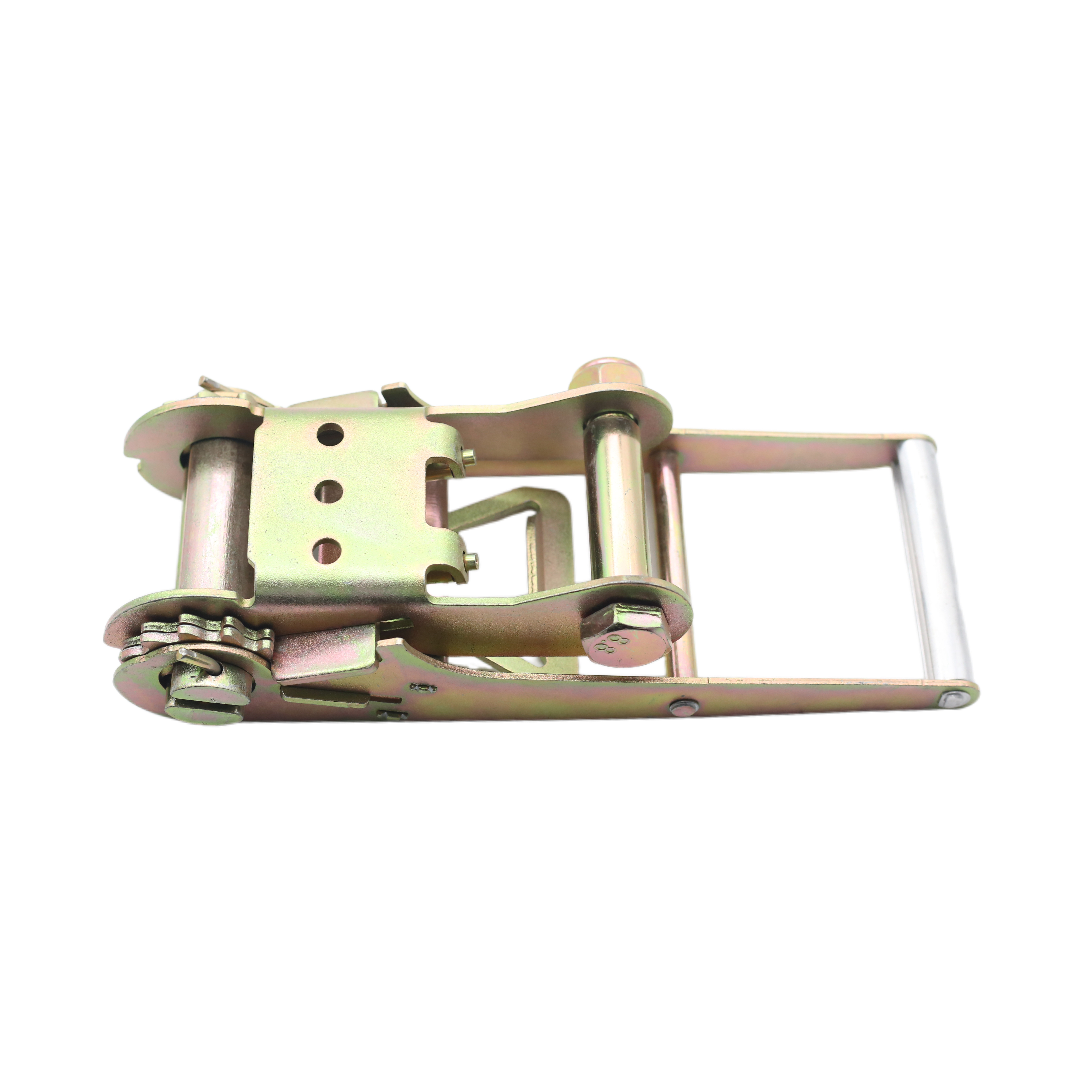

3'' 10T Ratchet Buckle

About this item:

Different Names:

3 Inch Heavy‑Duty Ratchet Buckle, 10 Ton Rated Load for Cargo Lashing Webbing

Applications:

Fasten heavy pallet goods inside containers at freight terminals for inter‑modal sea‑land shipment.
Combined use in project logistics to restrain oversized heavy industrial modules.

Advantages:

Thickened frame and strengthened gear‑pawl assembly resist deformation under huge tension, extending service life under frequent high‑load operations.
Well‑fitted gear‑pawl structure supports smooth step‑by‑step tightening and quick release, easy to operate even under heavy tension for 3‑inch webbing.

Webbing Size:

The breaking strength of ratchet is 10,000kg, suitable for 75mm wide webbing.

Detailed Specification:

Product Name	Heavy-duty Ratchet Buckle
Width	3'' / 75mm
Handle	Alumimum Handle
Material	Carbon Steel
Finished	Yellow Zinc Plated
Breaking Strength	10,000kg
Sample	Available
Place of Origin	Zhejiang, China


us 拉紧器应用图.png

3inch 10T ratchet buckle is an industrial mechanical tensioner. Using a heavy‑duty gear‑and‑pawl system, it applies and maintains high tension for 3‑inch lashing webbing. It supports incremental precise tightening and provides reliable holding force for heavy‑weight cargo transportation.

Primary Applications
Cargo Tie-Downs: Heavy-duty metal buckles used to secure cargo on trucks, trailers, and boats. They often feature workload ratings up to thousands of pounds.
Fashion (Ratchet Belts): A modern alternative to traditional hole-based belts, using a hidden track of teeth on the back of the strap for a custom, "hole-less" fit.
How to Use a Ratchet Buckle (Industrial/Tie-Down)
Thread the Strap: Ensure the buckle is in the closed position with the cylinder slot facing outward. Feed the strap through the slot from the bottom.
Remove Slack: Pull the strap through the reel until it is snug against the load.
Tension: Crank the handle back and forth. The internal gears will catch the strap and tighten it incrementally.
Lock: Once tight, push the handle down into the fully closed position to lock the tension.
Release: To undo, pull the spring-loaded release lever on the handle and rotate the handle 180 degrees until it clicks open, then pull the webbing out
