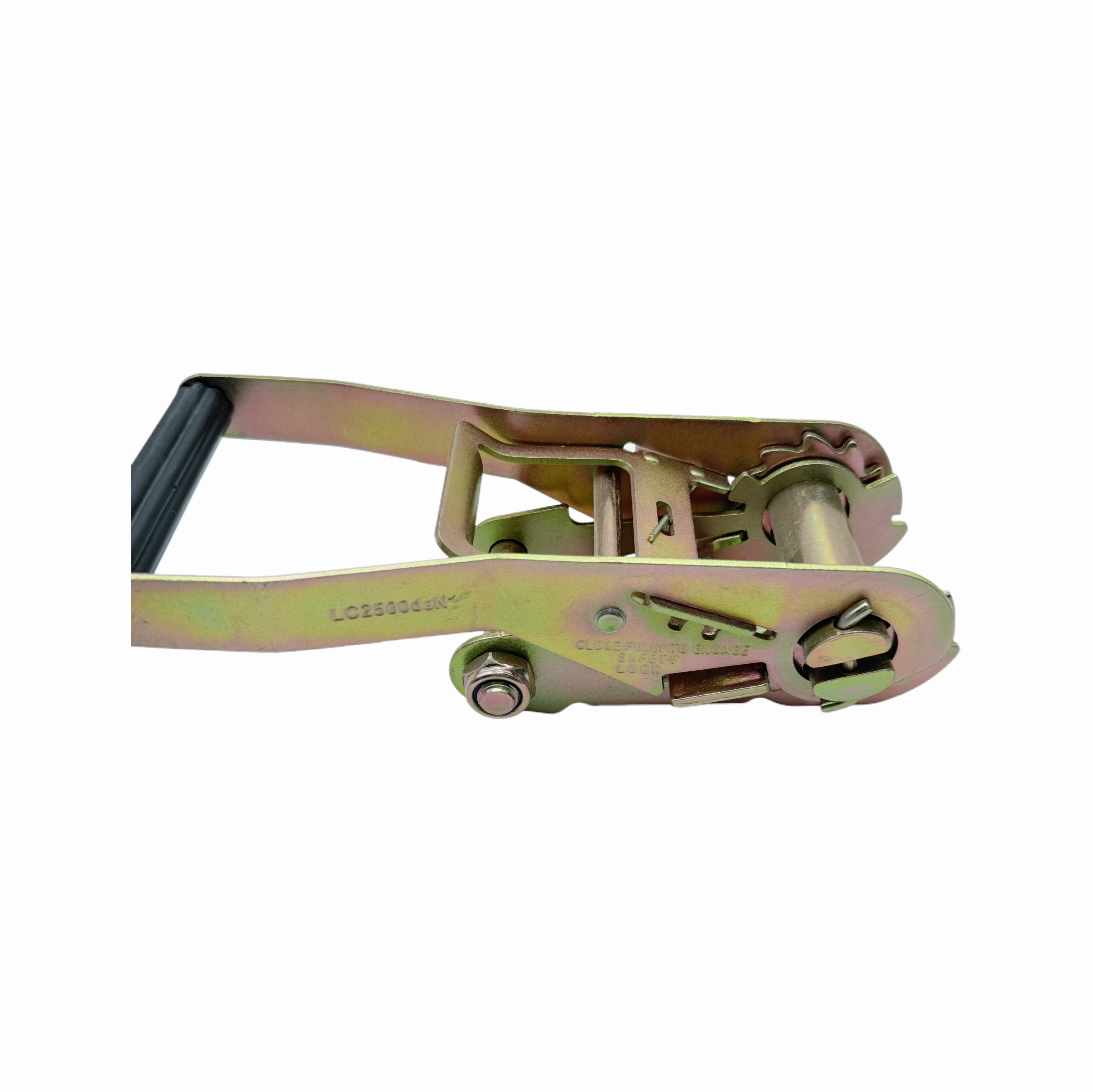

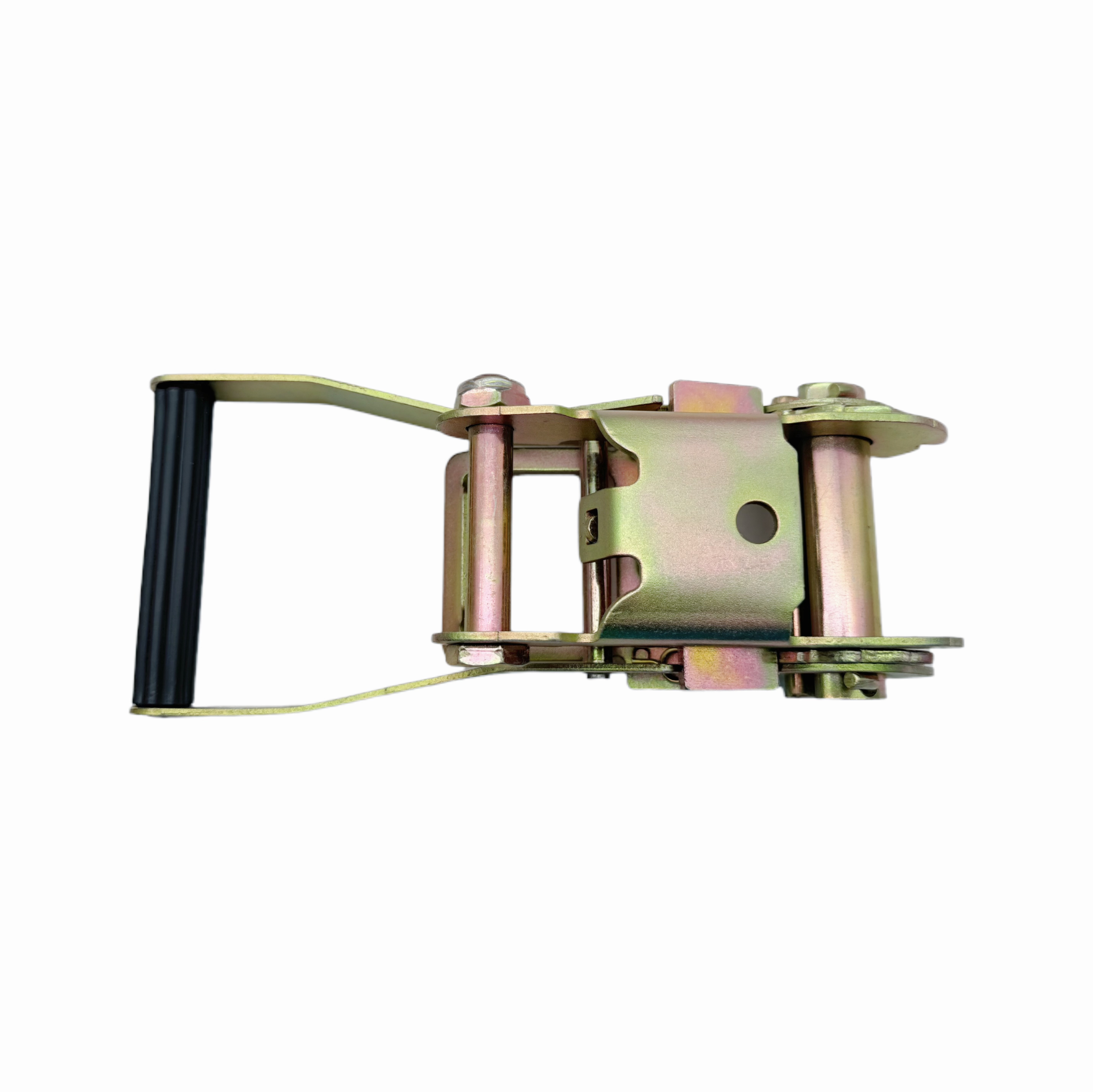

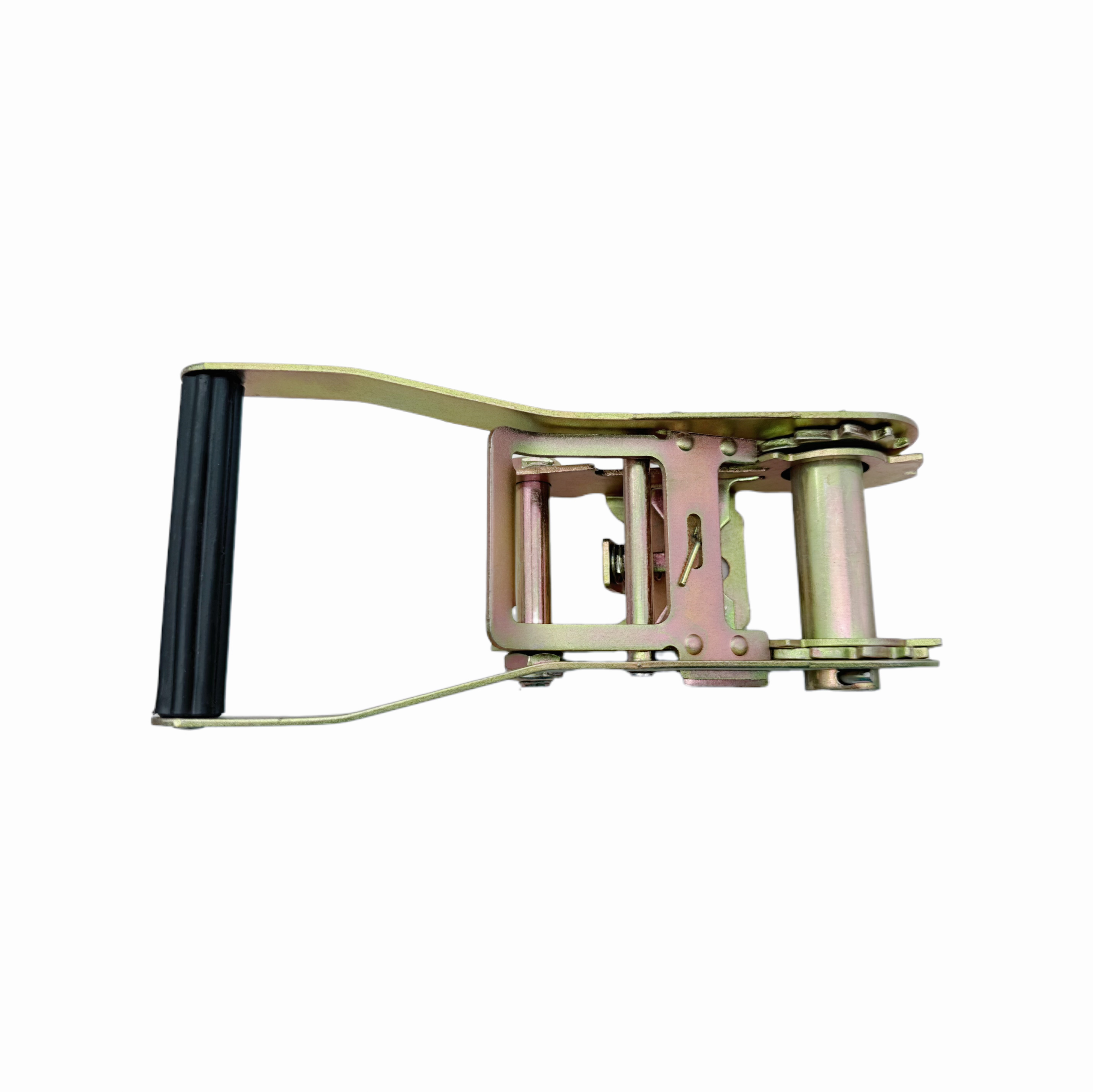

2'' 5,000kg Ratchet Buckle with Plastic Handle

2'' 5,000kg Ratchet Buckle with Plastic Handle

About this item:

Cost‑Effective 2" 5000kg Ratchet Buckle with Plastic Handle

Applications:

Daily Truck & Trailer Road Cargo Lashing
Warehouse, Freight Yard & Inland Logistics Operations

Advantages:

Solid plastic handle, cost‑effective and offers comfortable non‑conductive grip for daily operation
Heavy stamped‑steel body provides stable 5000kg working load for heavy‑duty cargo lashing

Webbing Size:

Suitable for fleet daily repeated fastening tasks with 2‑inch lashing webbing for highway transport

Detailed Specification:

Product Name	Ratchet Buckle
Width	2'' / 50mm
Handle	Plastic Handle
Material	Carbon Steel
Finished	Yellow Zinc Plated
Breaking Strength	5,000kg
Sample	Available


us 拉紧器应用图.png


A ratchet buckle is a mechanical device used to apply and maintain tension on a strap or belt through a gear and pawl system. Ratchet buckles are valued for their ability to tighten loads incrementally with high precision and strength.

Primary Applications
General‑Purpose Truck & Trailer Cargo Securement: Fasten heavy goods on trucks and trailers for routine highway fleet transportation.
Widely used in warehouses and freight yards for cost‑effective general‑purpose cargo lashing
How to Use a Ratchet Buckle (Industrial/Tie-Down)
Thread the Strap: Ensure the buckle is in the closed position with the cylinder slot facing outward. Feed the strap through the slot from the bottom.
Remove Slack: Pull the strap through the reel until it is snug against the load.
Tension: Crank the handle back and forth. The internal gears will catch the strap and tighten it incrementally.
Lock: Once tight, push the handle down into the fully closed position to lock the tension.
Release: To undo, pull the spring-loaded release lever on the handle and rotate the handle 180 degrees until it clicks open, then pull the webbing out
